Description

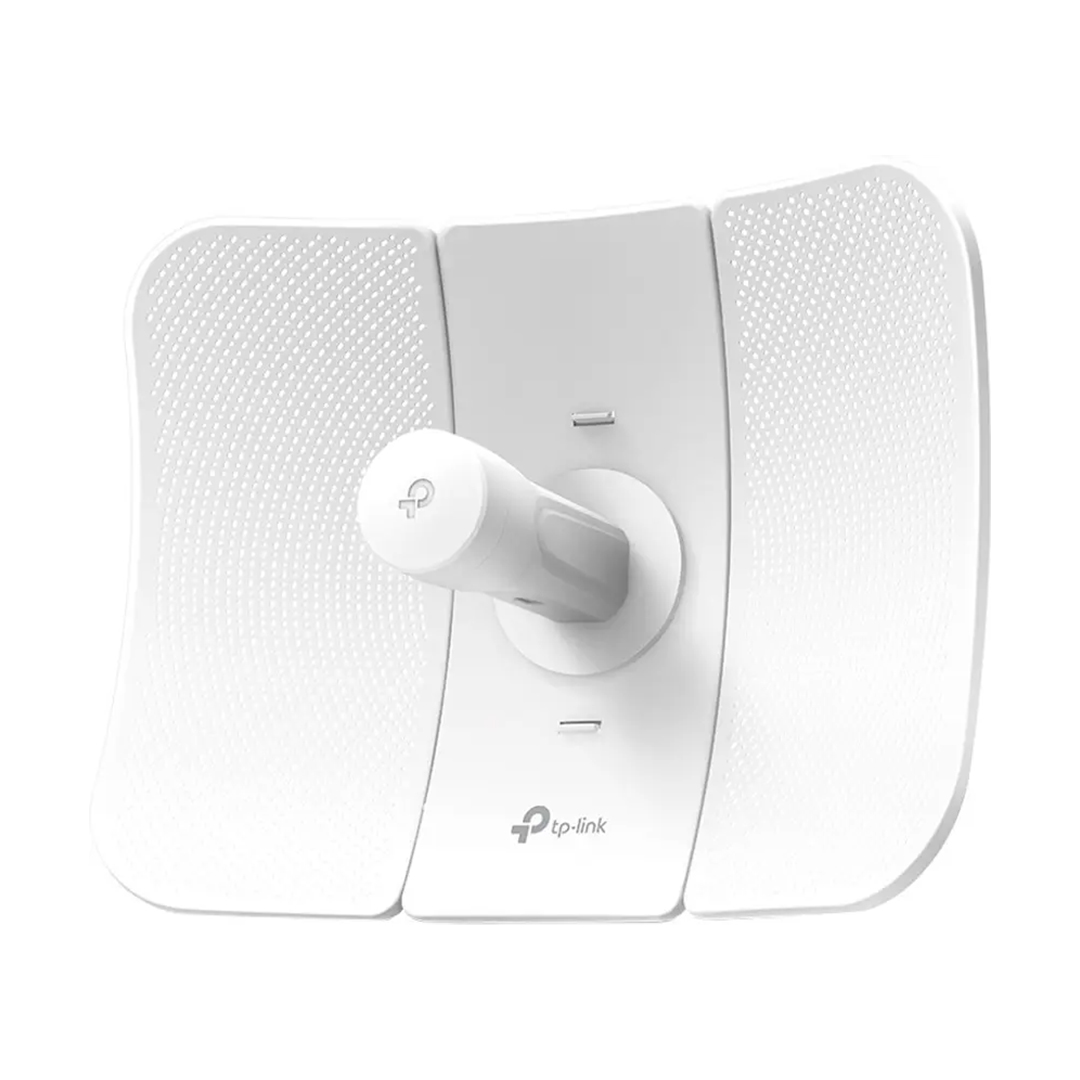

TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE

The TP-Link CPE610 is a high-performance outdoor Customer Premises Equipment (CPE) designed for long-distance wireless networking applications. Operating on the 5GHz band, it delivers speeds up to 300Mbps, making it ideal for point-to-point and point-to-multipoint deployments.

?? Key Features

• High-Gain Directional Antenna: 23dBi 2?2 MIMO Cassegrain antenna with metal reflector for excellent beam directivity and noise immunity.
• Long-Distance Transmission: Optimized for distances up to 30km.
• Pharos MAXtream TDMA Technology: Enhances throughput, capacity, and latency in multi-point setups.
• Robust Weatherproof Design: IP65-rated enclosure with 15kV ESD and 6kV lightning protection for harsh environments.

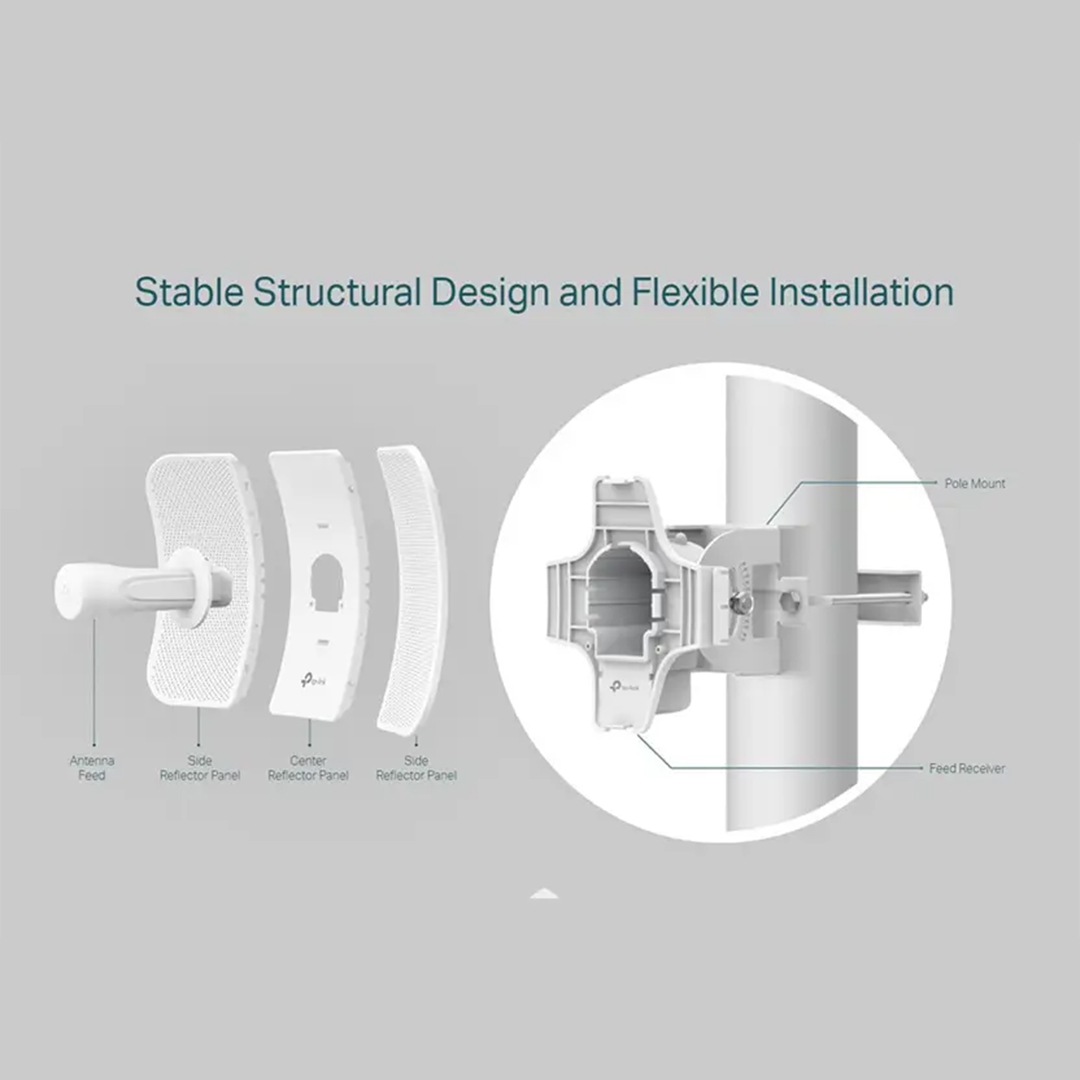

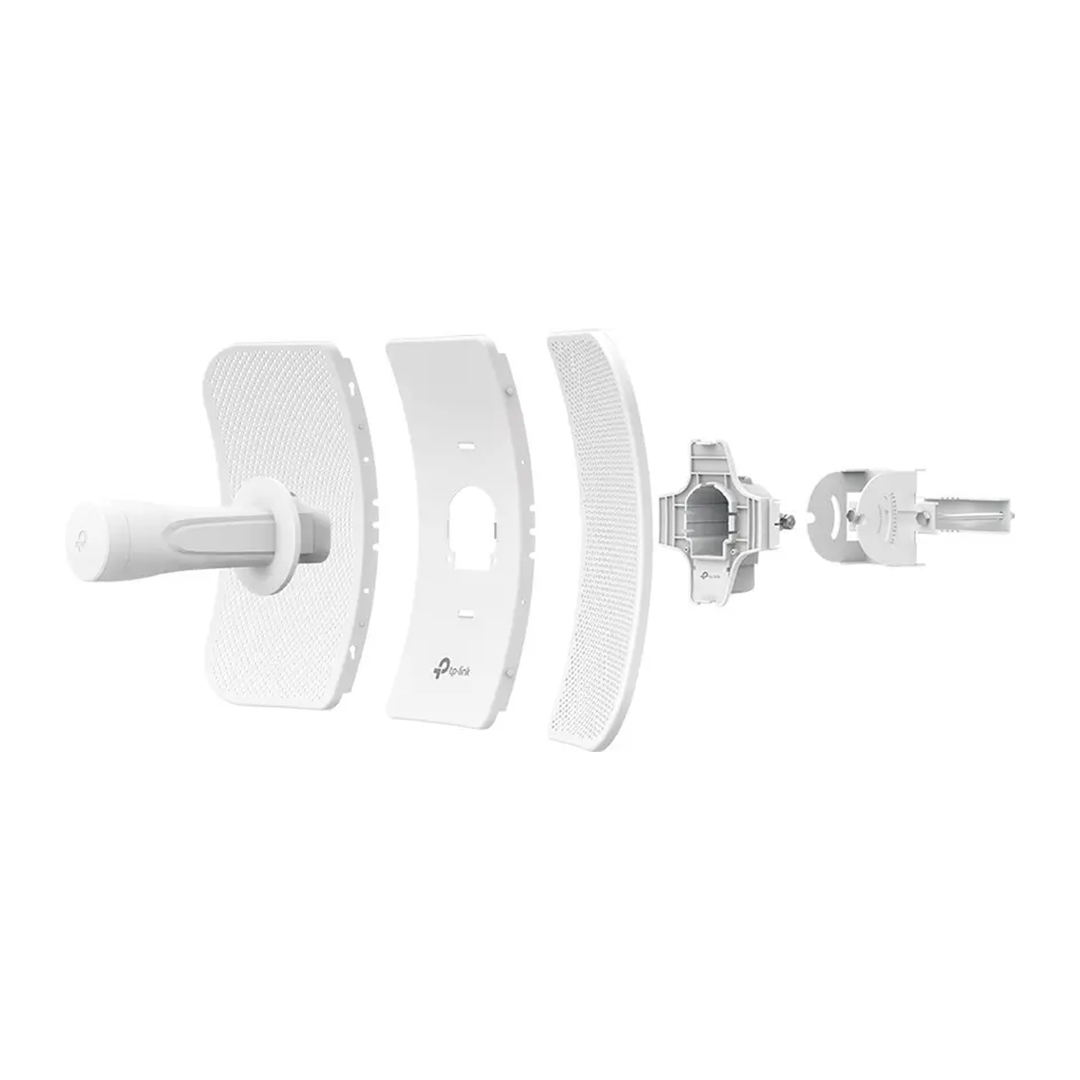

• Flexible Installation: Snap-lock parts and pole mount kits for easy and stable installation.
• Centralized Management: Manage via TP-Link’s Pharos Control software.

?? Technical Specifications

• Wireless Standards: IEEE 802.11a/n
• Frequency: 5.15~5.85GHz
• Data Rates:
  – Up to 300Mbps (40MHz)
  – Up to 144.4Mbps (20MHz)
  – Up to 72.2Mbps (10MHz)
  – Up to 36.1Mbps (5MHz)
• Transmission Power: Up to 25dBm (316mW)
• Antenna Beamwidth: 9? (Azimuth), 7? (Elevation)
• Interface: 1? 10/100Mbps Shielded Ethernet Port (LAN/PoE)
• Power Supply: Passive PoE (16?27VDC)
• Max Power Consumption: 8.8W
• Dimensions: 366 ? 280 ? 207 mm
• Protection: 15kV ESD, 6kV Lightning
• Enclosure: IP65-rated, UV-resistant plastic

?? Security & Management Features

• Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP encryption
• Management: Pharos Control software, Web (HTTP/HTTPS), SNMP
• Advanced Features: SPI firewall, DoS protection, access control, bandwidth control, VLAN tagging
